Barrel Corrugated Roof Making Machine

Select the number of specifications

Please check the product information you want!

Product Detail

Basic Info.

Tile Type

Colored Steel

Certification

CE, ISO

Condition

New

Customized

Usage

Roof, Wall

Transmission Method

Gearbox Drive

Total Power

11kw

Material Thickness

0.125-0.3mm

Flat Rollers Diameter

340mm

Forming Roller Diameter

390mm

Processing Width of Raw Material

750mm-1200mm

Machine Speed

10-15 Pieces Sheets/Minute

Machine Frame Thickness

100mm Thickness

Transport Package

in Nude, with Waterproof Cloth and Stow-Wood

Specification

4300mm*2000mm*1500mm

Origin

China

HS Code

84552210

Production Capacity

30sets/Month

Packaging & Delivery

Package Size

400.00cm * 150.00cm * 160.00cm

Package Gross Weight

3550.000kg

Product Description

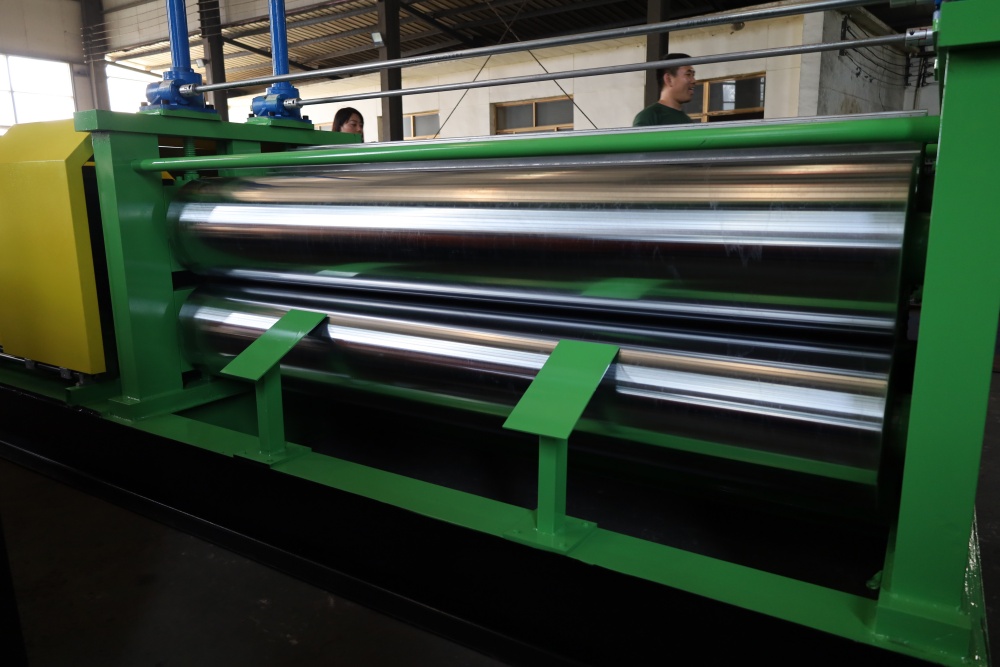

Barrel Corrugated Roof Making Machine

Metal thin barrel corrugating machine is a kind of metal sheet roll forming machine that specialized to roll forming thin
corrugated sheet.

It's thickness range about 0.13-0.5 mm and will have a little difference due to the material hardness.

It's very popular in the Philippines, Indonesia and some Southeast Asia, Africa, and other areas.

Machine speed about 10-15 pcs/ min. On the one side of the machine, have button to control the speed.

To feeding material, there has a feeding table can running, and have two stopper to push the material automatically.

The material width range is 750-1200 mm, the machine usually have 3.6 m, 5 m, 6 m standard type (horizontal distance).
Other size can be customized.

To make a accurate quotation, you need to provide material hardness and exact profile drawing. If you don't have profile drawing,
we can recommend you !

Machine Paramenters

NO.	Description	Quantity (set)
1	Transport material platform	1
2	Start stop button	1
3	Flat roller	2
4	Forming roller	2
5	Flat roll gear	2
6	Transmission shaft	2
7	Reducer	1
8	Distribution box	1

No	Item	Parameter	Note
1	Raw material	PPGI/G550
2	Material Thickness	0.12-0.5mm	At the same time, theaccumulationsheets' thickness cannot exceed 0.6mm
3	Flat rollers diameter	340mm	The rollers has 2 pieces
4	Forming roller diameter	390mm	The rollers has 2pieces (welded)
5	Processing width of raw material	750mm-1200mm
6	Machine speed	10-15 pieces sheets/minute
7	Machine frame thickness	100mm thickness	steel plate welding
8	Main motor power	If cut 3m length: 11kw If cut 4/5m length: 15kw	Shanghai LiChao Brand
9	Transmission method	Gear chain drive	stepless frequency conversion speed regulation
10	Voltage	220V/60HZ/3phases
11	Production capacity	2-4 tons/h
12	Machine sizes	If cut 3m length : W2.25L4.5m If cut 4m length: W2.3L5.9m If cut 5m length: W2.35*L7.5m

Barrel Corrugated Roof Making Machine
